Product Detail
1.Alu alloy frame
2.Double PVC fabric,B1
3.Span 3m-40m,length unlimit
4.For party,events,wedding,exhibition
5.CE approved

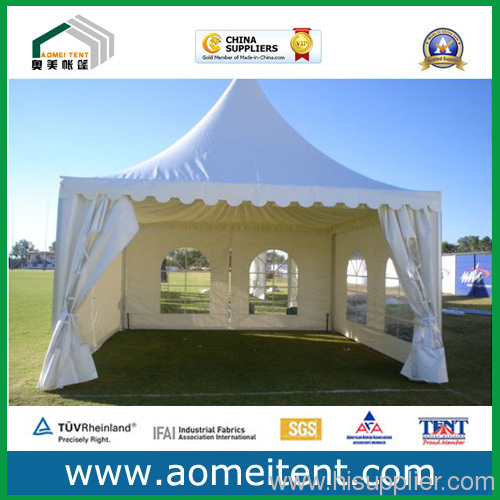

5mx5m pagoda wedding tent
1) newly design
2) Mostpopular style
3) Luxury, generous appearance, elegant
2) Mostpopular style
3) Luxury, generous appearance, elegant
We have five factories to producedifferent parts of tent ,including aluminum alloy processing factory,fabric processing factory , ABS solidwall factory, Glass wall and Glass Doorfactory, Steel conponnts factory. so we can offer the lowest cost andreliable quality aluminum tents.No matter wherever you come from and want topurchase tents, then buy from us should be a wise choise !
1.5mx5m pagoda wedding tent
| System Measures | Technical Description | ||||||||
| Frame material: Aluminumalloy | Aluminium Profiles: | ||||||||
| Solid, hard pressed | |||||||||
| Width | (A) | 5 | m | 4-groove /3-groove aluminium hollow profile | |||||
| Eave height | (C) | 2.5/3.0 | m | ||||||
| Ridge height | (D) | 0 | m | Steel Parts: | |||||
| Peak height | (E) | 4.7 | m | hot-dip galvanized according to DINEN ISO1461 | |||||
| Roof slope | 0 | ° | Thickness over 60um | ||||||
| Truss-distance | (B3) | 0 | m | ||||||
| Longest component | 4.795 | m | Ground Anchoring: | ||||||
| Truss profile | 64.5 x 64.5 | mm | Ground stakes or weight anchoringupon request | ||||||
| 48 x 100 | mm | ||||||||
| Load Requirements/TechnicalData: | |||||||||
| Roof fabric | 850 | g/sqm | Wind load acc.To DIN4112(Max.80km/h) | ||||||
| Side wall Fabric | 650 | g/sqm | Flame Retardant: DIN4102B1,M2 | ||||||
2. Material:
2.1 Aluminum type: Hard pressedextruded aluminum alloy 6061/T6 (13 HW)
2.2 Main profile size: 200mm*120mm (4channels)
2.3 Eave connection type: interal galvanized steelinsert
2.4 Connecting components:Hot-dipped galvanized steel;hot- dipped galvanized over 60um
2.5 Roof cover: Double PVC coated polyester textile(850g/m2); water proof; UV resistant; flame retardant to DIN4102B1/M2.
2.6 Sidewall cover: Double PVC coated polyester textile(650g/m2); water proof; UV resistant; flame retardant to DIN4102B1/M2.
3. Features:
1) Modular design, easy to be extended or decreased in 5msection
2) No pole inside, 100% space available
3) Max-allowed wind speed: 80km/hour
4) Allowed temperature condition: -30 degree Celsius~+70degree Celsius
5) Durable, easy to be set up and dismantled
6) Sizes can be customized
Accessories avaliable:
1.Lining&Curtain: Fit for large activities, decorating inside ,different colors areavailable
2.SteelAnchor: 1m/pcs or 0.5m/pcs to install the tent on the grass
3.Swell Screw: install the tent on the cement court
4.PVC Clear Windows: Transparent,wind-proof and rain-proof
5.Weight plate : The best safe install way ,it will not destory your floor
6.Woodfloor: Perfect decoration for any activities (carpet or wooden floor)
7.Glass wall/door system: Single door or double wing door for you choose
8.Air conditioning system : 3p or 5p and different brand
9.ABS Hard Wall
10.Weight Plate
5. Application
5.1 Widely used for party, outdoor wedding, exhibition,trade show, outdoor event, sports event, car show, church gathering,
military solution, temporary warehouse, workshop, andmany other outdoor activities.
5.2 OEM service is offered !
